Spartan Mowers
Our Spartan Mowers are available from the RZ series to the SRT Mark Martin series with your choice of different deck sizes, engine brand, and size and a multitude of accessories to choose from.
Let us help you into the Spartan of your dreams!
SPARTAN RZ
Read More
The Spartan RZ Series performs like a commercial-grade mower with a residential price! The RZ now offers three series options, the RZ, RZ Pro and RZ HD. The RZ with 48” deck can maneuver through tight spaces with ease and is an absolute beast of a machine for residential use (and it looks great too!). Upgrade to an RZ Pro or RZ HD for more deck size and engine options.
Spartan’s RZ Series is equipped with the standard features that make Spartan stand out from the rest: 22″ Bias Ply Tires (RZ), 22″ Rear Radial Tires (RZ Pro, RZ HD), GT Trac for the best incline traction, the Vibration Control Deck System, easy touch brake system, ergonomic cockpit, foot assist easy-lift deck, uncomplicated design for easy add-ons and maintenance, and state-of-the-art push start instrument panel.
The RZ Series is available in 48″, 54″ and 61″ deck sizes.
*See your authorized Spartan Mower dealer for more information and a test drive!

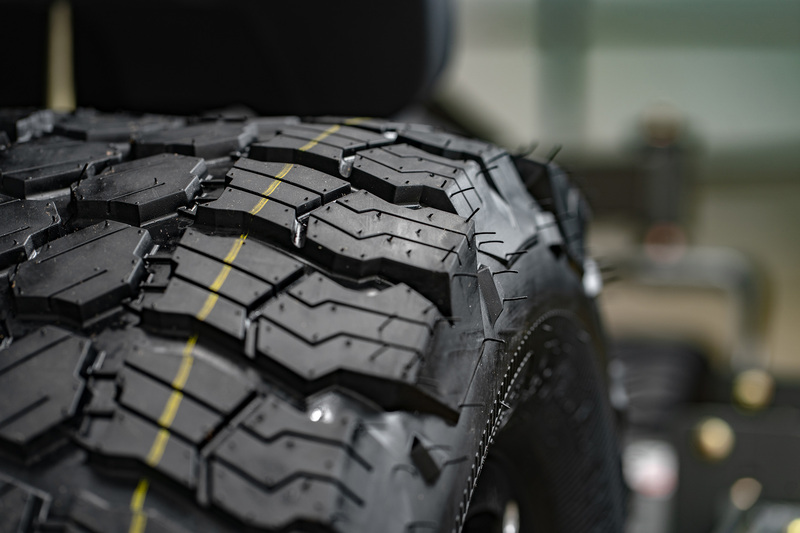

Rear Radial Tires

7 Gauge Steel Decks






Key Pad






Tuff-Torq


Parking Brake Pedals






RZ Briggs & Stratton 25 HP
ENGINE
Engine Name | Briggs and Stratton Commercial 25HP |
Horsepower | 25HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Tuff Torq 400 Series |
Hydraulic Drive Torque | Continuous – 1425in-lb | Max Torque – 3540in-lb |
Hydro Drive Maintenance | 500 Hours Between Oil Change |
Drive Tires | 22×11-R10 Bias Ply |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 8.5mph | Reverse – Up to 5mph |
FEATURES
Seat | GBR-7 Elastomer |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | Large Cup Holder |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 48″, 54″ |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Precision Deck Height Pin plus Locking Travel Height with Pin Adjusted Height Selection |
Cut Height | 1″ to 4.25″ with 12 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 48″ Deck – 49.5″ | 54” Deck – 55.5” Wide |
Weight | 48″ – 765lbs | 54” – 789lbs |
Length | 81” |
Height | 46″ |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 300 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons |
Hydraulic Drive Warranty | 3 Years or 300 Hours |
Control Panel Warranty | 3 Years |
RZ Pro Kawasaki 24 HP
ENGINE
Engine Name | Kawasaki FR691 |
Horsepower | 23HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Tuff Torq 400 Series |
Hydraulic Drive Torque | Continuous – 1425in-lb | Max Torque – 3540in-lb |
Hydro Drive Maintenance | 500 Hours Between Oil Change |
Drive Tires | 22×11-R10 Bias Ply |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 8.5mph | Reverse – Up to 5mph |
FEATURES
Seat | GBR-7 Elastomer |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | Large Cup Holder |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 48″, 54″ |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Precision Deck Height Pin plus Locking Travel Height with Pin Adjusted Height Selection |
Cut Height | 1″ to 4.25″ with 12 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 48″ Deck – 49.5″ | 54” Deck – 55.5” Wide |
Weight | 48″ – 782lbs| 54” – 800lbs |
Length | 81” |
Height | 46″ |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 300 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 Years or 300 Hours |
Control Panel Warranty | 3 Years |
RZ Pro Kawasaki 23 HP
ENGINE
Engine Name | Kawasaki FR691 23HP |
Horsepower | 23HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Tuff Torq 450 Series |
Hydraulic Drive Torque | Continuous – 1,425in-lb | Max Torque – 3,540in-lb |
Hydro Drive Maintenance | 500 Hours Between Oil Change |
Drive Tires | 22×12-R10 Radial | 22×10-R10 Radial |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Aluminum |
Speed (F/R) | Forward – Up to 8.5mph | Reverse – Up to 5mph |
FEATURES
Seat | GBR-7 Elastomer |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | Large Cup Holder |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 54” |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Precision Deck Height Pin plus Locking Travel Height with Pin Adjusted Height Selection |
Cut Height | 1″ to 4.25″ with 12 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck – 55.5” Wide |
Weight | 54” – 820lbs |
Length | 81″ |
Height | 46″ |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 300 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons |
Hydraulic Drive Warranty | 3 Years or 300 Hours |
Control Panel Warranty | 3 Years |
RZ Pro Briggs & Stratton 25 HP
ENGINE
Engine Name | Briggs and Stratton Commercial 25HP |
Horsepower | 25HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Tuff Torq 450 Series |
Hydraulic Drive Torque | Continuous – 1,425in-lb | Max Torque – 3,540in-lb |
Hydro Drive Maintenance | 500 Hours Between Oil Change |
Drive Tires | 22×12-R10 Radial | 22×10-R10 Radial |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Aluminum |
Speed (F/R) | Forward – Up to 8.5mph | Reverse – Up to 5mph |
FEATURES
Seat | GBR-7 Elastomer |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | Large Cup Holder |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 54″, 61″ |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Precision Deck Height Pin plus Locking Travel Height with Pin Adjusted Height Selection |
Cut Height | 1″ to 4.25″ with 12 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 793lbs | 61” – 827lbs |
Length | 81″ |
Height | 46″ |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 300 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 Years or 300 Hours |
Control Panel Warranty | 3 Years |
RZ HD Kawasaki 24 HP
ENGINE
Engine Name | Kawasaki FR730 24HP |
Horsepower | 24HP |
Fuel Capacity | 5gal |
DRIVELINE

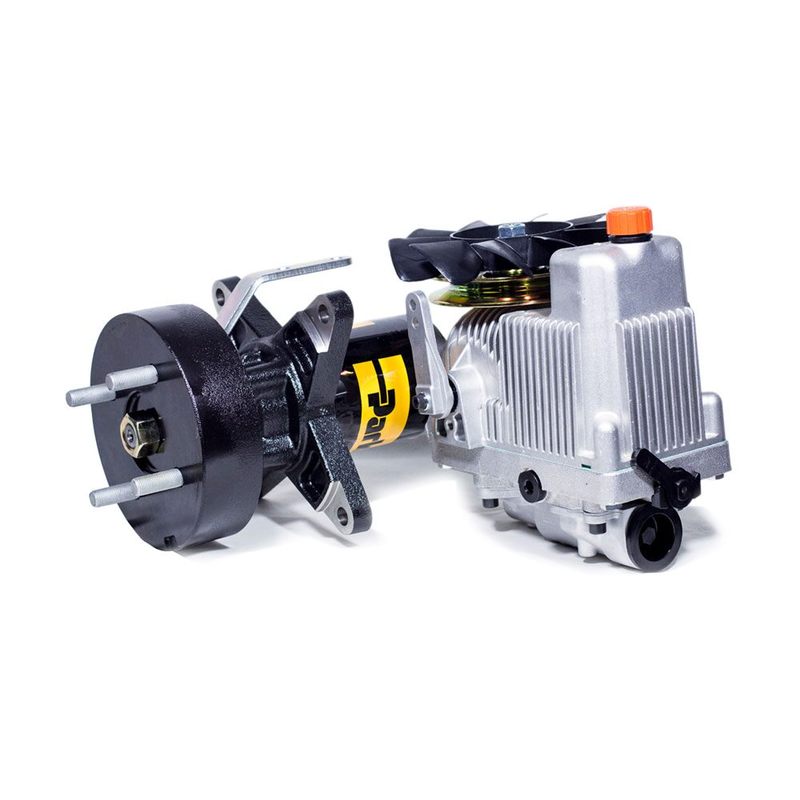

Hydraulic Drive | Parker HTE 10cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140in lb | Max Torque: 4,870in lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 22×12-R10 Radial | 22×10-R10 Radial |
Front Tires | 13×6.5-R6 Smooth Tread with Optional Radial Upgrade |
Wheels Type | Aluminum |
Speed (F/R) | Forward: Up to 9MPH | Reverse: Up to 5MPH |
FEATURES
Seat | RZ HD Seat |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet |
Storage | N/A |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 61” |
Deck Depth | 5” Deep, Full-floating deck |
Deck Lift | Foot operated with shock assist |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1” to 4.25” with 15 cut heights in between |
Blade Spindles | Cast aluminum, no maintenance/sealed double bearing |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” Deck: 62.5” wide |
Weight | 61” – 963lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 400 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
Control Panel Warranty | 3 Years |
RZ HD Briggs & Stratton 25 HP
ENGINE
Engine Name | Briggs & Stratton Commercial (44T9770022G1) |
Horsepower | 25HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc Wheel Motors |
Hydraulic Drive Torque | Continuous – 3,140in-lb | Max Torque – 4,870in-lb |
Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
Drive Tires | 22×12-R10 Radial | 22×10-R10 Radial |
Front Tires | 13×6.5-R6 Smooth Tread with Optional Radial Upgrade |
Wheels Type | Aluminum |
Speed (F/R) | Forward – Up to 9mph | Reverse – Up to 5mph |
FEATURES
Seat | RZ HD Seat |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | N/A |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 48″, 54″, 61″ |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
Cut Height | 1″ to 4.25″ with 15 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 48” Deck – 49.5” Wide | 54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide |
Weight | 48” – 907lbs | 54” – 927lbs | 61” – 948lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 400 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
Control Panel Warranty | 3 Years |
RZ HD Kawasaki 23 HP
ENGINE
Engine Name | Kawasaki FR691 23HP |
Horsepower | 23HP |
Fuel Capacity | 5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc Wheel Motors. |
Hydraulic Drive Torque | Continuous – 3,140in-lb | Max Torque – 4,870in-lb |
Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
Drive Tires | 22×12-R10 Radial | 22×10-R10 Radial |
Front Tires | 13×6.5-R6 Smooth Tread with Optional Radial Upgrade |
Wheels Type | Aluminum |
Speed (F/R) | Forward – Up to 9mph | Reverse – Up to 5mph |
FEATURES
Seat | RZ HD Seat |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet |
Storage | N/A |
Hitch | N/A |
CUTTING DECK
Deck Sizes | 48″, 54″ |
Deck Depth | 5″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist |
Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
Cut Height | 1” to 4.25” with 15 cut heights in between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 48” Deck – 49.5” Wide | 54” Deck – 55.5” Wide |
Weight | 48” – 922lbs | 54” – 942lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 400 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SPARTAN RT
Read More
The Spartan RT PRO and RT HD offer a dollar for dollar value that is a cut above the competition. The RT Series is packed with the basic features that make Spartan stand out from the rest: GT Trac for the best incline traction, easy touch brake system, ergonomic cockpit, foot assist easy-lift deck, straightforward design for easy add-ons and maintenance, the Vibration Control Deck System, and state-of-the-art push start instrument panel.
The RT-HD is a heavy duty commercial mower option offering fleet-like pricing to everyday buyers. There is not another commercial mower that offers such value.
Go ahead. Take a test drive. The comfort, the smooth ride, the clean and even cut, the traction on inclines…you cannot miss the difference. The RT Series is the most decked-out mower line on the planet at an incredibly affordable price. Take Command of your yard or your business with the RT Series Spartan Mowers.
*See your authorized Spartan Mower dealer for more information and a test drive!
Rear Radial Tires






HD Fusion Welded Frames





7 Gauge Steel Decks

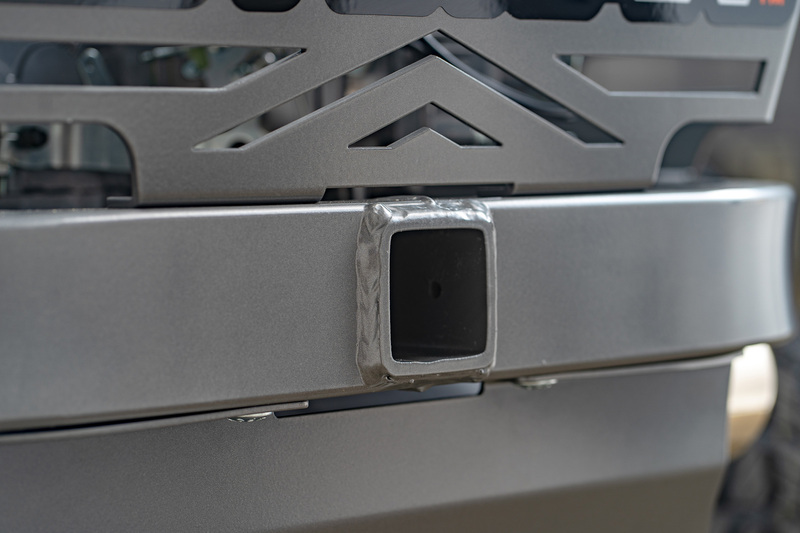

Receiver Hitch





Key Pad






Hydraulic Drive





Folding ROPS (Roll Over Protection System)





Parking Brake Pedals






RT Kawasaki FS-730 24 HP
ENGINE
Engine Name | Kawasaki FS-730 |
Horsepower | 24HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc Wheel Motors |
Hydraulic Drive Torque | Continuous – 3,140in-lb | Max Torque – 4,870in-lb |
Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 9mph | Reverse – Up to 5mph |
FEATURES
Seat | GBR-7 Elastomer |
Steering Levers | Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet Next to Phone Holder |
Storage | Phone Holder, Cup Holder, and Deep Storage Tray |
Hitch | 2″ Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54″, 61″ |
Deck Depth | 6″ Deep, Reinforced 7 Gauge XTF (Xtreme Turf Flow) Deck |
Deck Lift | Foot Operated with Shock Assist. Optional Push-Button Electric Actuator |
Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast Aluminum, No Maintenance/Sealed Double Bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1069lbs | 61” – 1095lbs |
Length | 84″ |
Height | 75” with ROPS up (54” with Folding ROPS down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 500 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
Control Panel Warranty | 3 Years |
RT Pro Kohler Confidant 25 HP
ENGINE
Engine Name | Kohler Confidant |
Horsepower | 25HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Steel |
Speed (F/R) | Forward: Up to 9MPH | Reverse: Up to 5MPH |
FEATURES
Seat | GBR-7 Elastomer Dampeners |
Steering Levers | Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54” & 61” |
Deck Depth | 6” Deep, reinforced 7 gauge deck XTF (Xtreme Turf Flow) deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed double ag bearings |
Parking Brake | Foot operated |
Frame | 1.5” x 3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1059lbs | 61” – 1089lbs |
Length | 84” |
Height | 75” with ROPS up (54” with Folding ROPS down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 500 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT Pro Briggs & Stratton 27 HP
ENGINE
Engine Name | Briggs and Stratton Commercial (44T977) |
Horsepower | 27HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Smooth Tread |
Wheels Type | Steel |
Speed (F/R) | Forward: Up to 9MPH | Reverse: Up to 5MPH |
FEATURES
Seat | GBR-7 Elastomer Dampeners |
Steering Levers | Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” |
Deck Depth | 6” Deep, reinforced 7 gauge deck XTF (Xtreme Turf Flow) deck |
Deck Lift | Foot-operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed double bearing |
Parking Brake | Foot-operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1053lbs | 61” – 1086lbs |
Length | 84” |
Height | 75” with ROPS up (54” with Folding ROPS down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 500 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT HD Vanguard 26HP
ENGINE
Engine Name | Vanguard (49R977) |
Horsepower | 26HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” |
Deck Depth | 6″ Deep, Reinforced 7 Gauge XTF (Xtreme Turf Flow) Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide |
Weight | 54” – 1074lbs | 61” – 1102lbs |
Length | 84” |
Height | 75” ROPS Up (54” ROPS Down) |
WARRANTY
Engine Warranty | 3 years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT HD Kawasaki 27HP
ENGINE
Engine Name | Kawasaki FX-850 |
Horsepower | 27HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” & 72” |
Deck Depth | 6” Deep, Full-floating deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide | 72” Deck: 73.5” wide |
Weight | 54” – 1108lbs | 61” -1138lbs | 72” – 1170lbs |
Length | 84” |
Height | 75” with ROPS up (54” Folding ROPS Down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT HD Vanguard 32HP
ENGINE
Engine Name | Vanguard Big Block (543777) |
Horsepower | 32HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61”, 72” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide | 72” Deck: 73.5” wide |
Weight | 54” – 1110lbs| 61”- 1143lbs | 72” – 1176lbs |
Length | 84” |
Height | 75” with ROPS up (54” Folding ROPS Down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT HD Vanguard 37HP
ENGINE
Engine Name | Vanguard Big Block EFI (61E877) |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc Wheel Motors |
Hydraulic Drive Torque | Continuous – 3,140in-lb | Max Torque – 4,870in-lb |
Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet Next to Phone Holder |
Storage | Phone Holder, Cup Holder, and Deep Storage Tray |
Hitch | 2″ Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54″, 61″, & 72″ |
Deck Depth | 6″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist. Optional Push-Button Electric Actuator |
Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide | 72” Deck – 73.5” Wide |
Weight | 54” – 1118lbs | 61” – 1151lbs | 72” -1183lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
RT HD Vanguard 37HP w/Oil Guard
ENGINE
Engine Name | Vanguard EFI with Oil Guard |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors |
Hydraulic Drive Torque | Continuous: 3,140in lb. Max Torque:4,870in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” & 72” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” cut: 55.5” wide | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 54” – 1134lbs | 61” – 1167lbs | 72” – 1199lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SPARTAN SRT
Read More
The Spartan SRT Series offers the PRO, HD, and XD version mowers to accommodate small and large commercial jobs. The SRT Series has everything the RT is packed with: GT Trac for incline traction, the Vibration Control Deck System, easy touch brake system, and ergonomic cockpit. With one exception…the SRT has even more.
The most prominent feature is Smart Ride Technology. All SRT Series mowers are equipped with an improved Smart Ride Technology package. Middle and back Elastomer TecsPak® and front neoprene cushioning absorb any shock or jostling. This, along with our soft ride rear radial tires and our frame design with neoprene torsion bar makes the SRT the smoothest riding mower on the planet. It’s like riding in a sports car, and it cuts like a dream. Go ahead, try it out. It’s not like any other mower out there. Experience the difference.
Questions about any of the key features and components? Check out our detailed specifications sheets.
*See your authorized Spartan Mower dealer for more information and a test drive!
Rear Radial Tires






HD Fusion Welded Frames





7 Gauge Steel Decks






Receiver Hitch





Key Pad






Hydraulic Drive





Folding ROPS (Roll Over Protection System)





Parking Brake Pedals

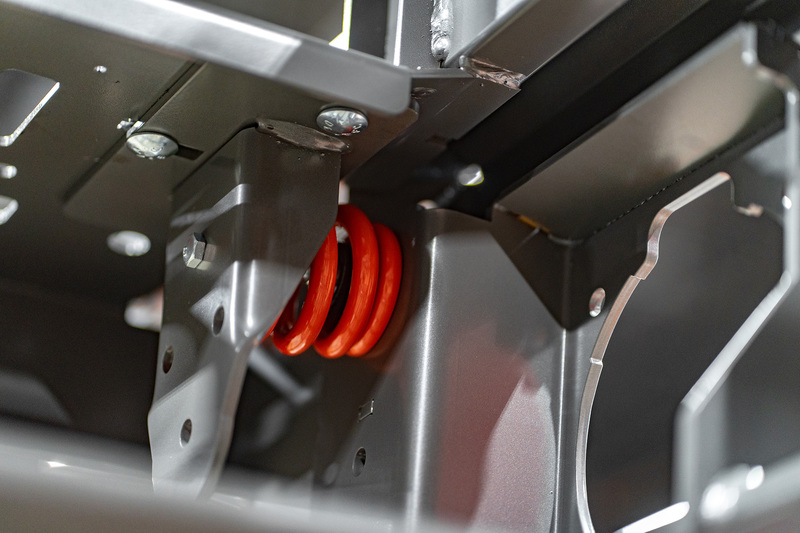

Spring Suspension




SRT PRO KOHLER 25HP
ENGINE
Engine Name | Kohler Confidant (ZT740) |
Horsepower | 25HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc wheel motors |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 9mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54” & 61” |
Deck Depth | 6” Deep, Full-floating deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.5” to 5.5” with 15 cut heights in between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1145lbs| 61” – 1168lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 500 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
Control Panel Warranty | 3 Years |
SRT PRO BRIGGS AND STRATTON 27HP
ENGINE
Engine Name | Briggs and Stratton Commercial (49T877) |
Horsepower | 27HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTE 10cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 9mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54” & 61” |
Deck Depth | 6” Deep, Full-floating deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.5” to 5.5” with 15 cut heights in between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1137lbs | 61” – 1160lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 years or 500 Hours, 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 years or 750 Hours. See full warranty for disclosure and restricitons. |
Control Panel Warranty | 3 Years |
SRT HD VANGUARD 26HP
ENGINE
Engine Name | Vanguard (49R977) |
Horsepower | 26HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54,” 61” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.75″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1147lbs | 61” – 1173lbs |
Length | 84” |
Height | 75” with ROPS up (54” Folding ROPS Down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT HD KAWASKI 26HP
ENGINE
Engine Name | Kawasaki FT730 |
Horsepower | 26HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc wheel motors. |
Hydraulic Drive Torque | Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
Hydro Drive Maintenance | 1,000 hours between oil change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” |
Deck Depth | 6” Deep, Full-floating deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.75″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck: 55.5” wide | 61” Deck: 62.5” wide |
Weight | 54” – 1162lbs | 61” – 1188lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT HD VANGUARD 36HP
ENGINE
Engine Name | Vanguard Big Block |
Horsepower | 36hp |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTJ 12cc Wheel Motors |
Hydraulic Drive Torque | Continuous – 3,140in-lb | Max Torque – 4,870in-lb |
Hydro Drive Maintenance | 1,000 Hours Between Oil Change |
Drive Tires | 24×12-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Steel |
Speed (F/R) | Forward – Up to 11mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down |
Control Panel LCD Display | Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes |
Control Panel LED Warning Indicators | Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI |
Ignition | Keyless, Enter Personal Code to Start |
Auxiliary Power | 12v Outlet Next to Phone Holder |
Storage | Phone Holder, Cup Holder, and Deep Storage Tray |
Hitch | 2″ Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54″, 61″, & 72″ |
Deck Depth | 6″ Deep, Full-Floating Deck |
Deck Lift | Foot Operated with Shock Assist. Optional Push-Button Electric Actuator |
Deck Adjustment | Change-On-The-Go Precision Deck Height Dial |
Cut Height | 1.25″ to 4.75″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot Operated |
Frame | 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide | 72” Deck – 73.5” Wide |
Weight | 54” – 1188lbs | 61” – 1214lbs | 72” – 1254lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT XD VANGUARD 36 HP
ENGINE
Engine Name | Vanguard Big Block (613777) |
Horsepower | 36HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors. |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 61” & 72” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 61” – 1287lbs | 72” – 1326lbs |
Length | 84” |
Height | 75” Fixed ROPS up (54” Folding ROPS Down) |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT XD VANGUARD 28HP
ENGINE
Engine Name | Vanguard Big Block |
Horsepower | 28HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum Rear Wheels and Front Hub Covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 54”, 61” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide |
Weight | 54” – 1257lbs | 61” – 1281lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT XD VANGUARD 37HP
ENGINE
Engine Name | Vanguard EFI (61E877) |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors. |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 61” & 72” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 61” – 1290lbs | 72” – 1331lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT XD VANGUARD 37HP W/OIL GUARD
ENGINE
Engine Name | Vanguard EFI with Oil Guard |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial | 24×10.50-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 61” & 72” |
Deck Depth | 6” Deep, Full Floating Deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 61” – 1319lbs | 72” – 1343lbs |
Length | 84″ |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restricitons. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
SRT LIMITED MARK MARTIN EDITION
MARK MARTIN SRT XD VANGUARD 37HP
ENGINE
Engine Name | Vanguard EFI (61E877) |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors. |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 61” & 72” |
Deck Depth | 6” Deep, reinforced 7 gauge deck XTF (Xtreme Turf Flow) deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 61” – 1263lbs | 72” – 1295lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
Read More
For a limited time, Spartan Mowers will offer the Limited SRT ‘Mark Martin’ Edition. The Mark Martin Edition is available in the SRT, HD, and XD models, and comes equipped with all the standard features of the SRT XD including Improved Smart Ride Technology and the Vibration Control Deck System, as well as a customized upgraded seat, dual chrome exhaust, LED light, and custom Mark Martin decals.
It looks, feels, and sounds like you’re on the race track.
*See your authorized Spartan Mower dealer for more information and a test drive!
Rear Radial Tires






HD Fusion Welded Frames





7 Gauge Steel Decks






Receiver Hitch





Key Pad






Hydraulic Drive





Folding ROPS (Roll Over Protection System)





Parking Brake Pedals






Spring Suspension




Adjustable Seat



SRT LIMITED MARK MARTIN EDITION
MARK MARTIN SRT XD VANGUARD 37HP
ENGINE
Engine Name | Vanguard EFI (61E877) |
Horsepower | 37HP |
Fuel Capacity | 9.5gal |
DRIVELINE
Hydraulic Drive | Parker HTG 16cc wheel motors. |
Hydraulic Drive Torque | Continuous: 5,970in lb. Max Torque: 7,040in lb. |
Hydro Drive Maintenance | 1000 hours between oil change |
Drive Tires | 24×14-R12 Radial |
Front Tires | 13×6.5-R6 Radial |
Wheels Type | Aluminum rear wheels and front hub covers |
Speed (F/R) | Forward – Up to 13mph | Reverse – Up to 5mph |
FEATURES
Seat | Floating Seat System |
Steering Levers | Soft-touch knobs to adjust forward to back. Adjustable up and down |
Control Panel LCD Display | Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes |
Control Panel LED Warning Indicators | Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI |
Ignition | Keyless, enter personal code to start |
Auxiliary Power | 12 Volt outlet next to phone holder |
Storage | Phone holder, cup holder and deep storage tray |
Hitch | 2” Rear Receiver Standard |
CUTTING DECK
Deck Sizes | 61” & 72” |
Deck Depth | 6” Deep, reinforced 7 gauge deck XTF (Xtreme Turf Flow) deck |
Deck Lift | Foot operated with shock assist. Optional push-button electric actuator. |
Deck Adjustment | Change-on-the-go Precision Deck Height Dial |
Cut Height | 1.75″ to 5″ with 15 Cut Heights in Between |
Blade Spindles | Cast aluminum, no maintenance/sealed four ag bearings |
Parking Brake | Foot operated |
Frame | 1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
Width | 61” cut: 62.5” wide | 72” cut: 73.5” wide |
Weight | 61” – 1263lbs | 72” – 1295lbs |
Length | 84” |
Height | 75″ with ROPS Up – 54″ with Folding ROPS Down |
WARRANTY
Engine Warranty | 3 Years |
Full Warranty | 3 Years or 500 hours Residential, 2 Years or Unlimited Hours Commercial. 120 Day Belt Warranty |
Deck Warranty | Lifetime on the leading edge. See full warranty for disclosure and restrictions. |
Hydraulic Drive Warranty | 3 Years or 1500 hours. See full warranty for disclosure and restrictions. |
Control Panel Warranty | 3 Years |
Read More
For a limited time, Spartan Mowers will offer the Limited SRT ‘Mark Martin’ Edition. The Mark Martin Edition is available in the SRT, HD, and XD models, and comes equipped with all the standard features of the SRT XD including Improved Smart Ride Technology and the Vibration Control Deck System, as well as a customized upgraded seat, dual chrome exhaust, LED light, and custom Mark Martin decals.
It looks, feels, and sounds like you’re on the race track.
*See your authorized Spartan Mower dealer for more information and a test drive!
Rear Radial Tires






HD Fusion Welded Frames





7 Gauge Steel Decks






Receiver Hitch





Key Pad






Hydraulic Drive





Folding ROPS (Roll Over Protection System)





Parking Brake Pedals






Spring Suspension




Adjustable Seat



Oil Cooler
Spoiler
*Dealer inventory is subject to change at any time without notice
